CLARION XH7110 |
|
CLASS GH/AB AMPLIFIERS |
|
Clarion amplifiers feature uncompromising resistance to magnetic noise, thereby minimizing distortion, as well as gold-plated block terminals to offer low electrical and contact resistance. Easy subwoofer system configuration is possible with the embedded high-pass and low-pass filters. The result is high quality sound you can enjoy in a variety of systems.
Features:
- Power @ 4-Ohm, 450w x 1
- Power @ 2-Ohm, 850w x 1
- Input Voltage Sensing
- Precise Frequency Control
- Precise Frequency Selector -24dB / Oct. Low Pass Crossover, 30-230Hz
- Adjustable Subsonic Filter, off/15/30Hz
- Number of Channels, MONO
- MOS-FET Power Supply
- 2-Ohm Stable
- 1-Ohm Mono Stable
- Variable Bass Boost; 0-15dB @ 30-125Hz
- Gold Plated Connectors; RCA/ Speaker/ Power
- Speaker Level Input
- Dimensions : 16-1/32" x 9" x 2-5/8"
|
|

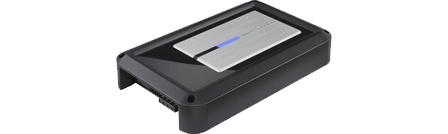

CLARION XH5410 |
|
4/3/2 CHANNEL POWER AMPLIFIER |
|
Features:
- Power @ 4-Ohm, 90w x 4
- Power @ 2-Ohm, 160w x 4
- Bridged Power @ 4-Ohm, 320w x 2
- Input Voltage Sensing
- Precise Frequency Control
- Number of Channels, 4/3/2
- MOS-FET Power Supply
- 2-Ohm Stable
- Adjustable - 18db. High/Low Pass Crossovers, 55Hz-550Hz or 550Hz-5.5kHz with the Crossover Frequency Multiplier
- Variable Bass Boost; 0-15dB @ 45Hz
- Gold Plated Connectors; RCA/ Speaker/ Power
- Speaker Level Input
- Dimensions : 14-11/16" x 9" x 2-5/8"
|
|

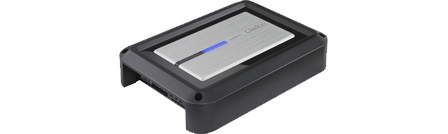

CLARION XH5210 |
|
2/1 CHANNEL POWER AMPLIFIER |
|
Features:
- Power @ 4-Ohm, 90w x 2
- Power @ 2-Ohm, 160w x 2
- Bridged Power @ 4-Ohm, 320w x 1
- Input Voltage Sensing
- Precise Frequency Control
- Number of Channels, 2/1
- MOS-FET Power Supply
- 2-Ohm Stable
- Adjustable - 18db. High/Low Pass Crossovers, 55Hz-550Hz or 550Hz-5.5kHz with the Crossover Frequency Multiplier
- Variable Bass Boost; 0-15dB @ 45Hz
- Gold Plated Connectors; RCA/ Speaker/ Power
- Speaker Level Input
- Dimensions : 12-7/16" x 9" x 2-5/8"
|
