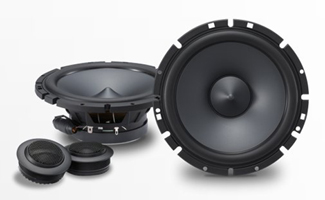

| ALPINE - SPS-610C |
|
| 6-1/2" Coaxial 2-Way Speaker Set |
|
|
With six models in the Type-S line-up, you'll find a speaker size to fit your car's needs - and an ideal replacement for factory speakers. A shallow mounting design allows for easy installation in a wide range of door panels giving you a perfect fit. Their high-efficiency design can run off of the built-in amplifier power from the factory or Alpine head unit, resulting in an easy system improvement for any vehicle.
Features
- Power Handling
CEA-2031 Power Rating: 80 Watts
Power Handling Capacity (RMS): 80 Watts
Power Handling Capacity (Peak): 240 Watts
- Dimensions
Tweeter Mounting Diameter (mm): 37.8mm
Tweeter Mounting Diameter (in): 1-1/2''
Tweeter Mounting Depth (mm): 18.3mm
Tweeter Mounting Depth (in): 3/4''
Woofer Mounting Diameter (mm): 127mm
Woofer Mounting Diameter (in): 5''
Woofer Mounting Depth (mm): 56mm
Woofer Mounting Depth (in): 2-1/4''
- General
Frequency Response: 70Hz - 22kHz
Impedence: 4 Ohms
Sensitivity: 88dB /W(1m)
- Tweeter
Tweeter Type: 1'' Wide-Range Silk Dome Tweeter
Application Type / Design Detail: Internal / Swivel Tweeter
Magnet Material: Ultra Low Distortion Magnet Design
- Woofer
Cone Material: Poly-Mica Cone
Motor Technology: Optimized Magnet
Voice Coil Type: Square-Wire Short Voice Coil
Cooling: Optimized Air-Flow Design
Magnet: High Grade Strontium Magnet
Mounting: Shallow Mounting Design
Frame: Stamped Steel Shallow Frame
- Crossover Network
Grade: High Grade In-Line Crossover Network
|
 |

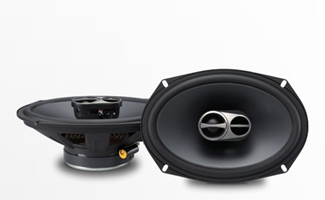

| ALPINE - SPS-619 |
|
| 6" x 9" Coaxial 3-Way Set |
|
|
Turn up the volume. These speakers deliver amazing lows, mids, and highs. Become a believer once you hear the difference between stock and Alpine sound quality. Upgrade your system and hear what you've been missing.
The Type-S speakers also use an HD polymer frame for improved sound and installation, while a high-performance soft dome tweeter provides smooth, detailed sound. The tweeters can swivel up to 10 degrees so you can adjust for the optimum listening position.
Features
- Power Handling
CEA-2031 Power Rating: 85 Watts
Power Handling Capacity (RMS): 85 Watts
Power Handling Capacity (Peak): 260 Watts
- Dimensions
Woofer Mounting Diameter (mm): 150 x 222mm
Woofer Mounting Diameter (in): 5-15/16'' x 8-3/4''
Woofer Mounting Depth (mm): 76.4mm
Woofer Mounting Depth (in): 3''
- General
Frequency Response: 65Hz - 23kHz
Impedence: 3.6 Ohms
Sensitivity: 90dB /W(1m)
- Tweeter
Tweeter Type: 1'' Wide Range Silk Dome + 5/8'' Dome Tweeter
Application Type / Design Detail: Fixed Internal Tweeter
Magnet Material: Ultra Low Distortion Magnet Design
- Woofer
Cone Material: Poly-Mica Cone
Motor Technology: Optimized Magnet
Voice Coil Type: Square-Wire Short Voice Coil
Cooling: Optimized Air-Flow Design
Magnet: High Grade Strontium Magnet
Mounting: Shallow Mounting Design
Frame: Stamped Steel Shallow Frame
|
 |

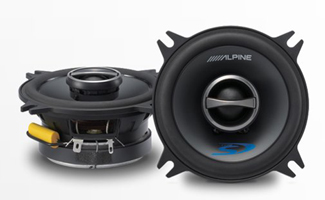

| ALPINE - SPS-410 |
|
| 4" Coaxial 2-Way Speaker Set |
|
|
Type-S speakers feature a larger voice coil and silk soft-dome to produce high-quality sound. The new grille not only has a sleek aluminum look, but is also designed to help optimize sound by improving sound dispersion. The angle of the tweeter guard complements the angle of the surround guard, resulting in linear expansion of sound and less distortion of mid and high frequencies. Type-S coaxial speakers come in a variety of sizes to fit your vehicle - the ideal upgrade for your factory speakers!
- Power Handling
CEA-2031 Power Rating: 45 Watts
Power Handling Capacity (RMS): 45 Watts
Power Handling Capacity (Peak): 140 Watts
- Dimensions
Woofer Mounting Diameter (mm): 93mm
Woofer Mounting Diameter (in): 3-11/16''
Woofer Mounting Depth (mm): 41.7mm
Woofer Mounting Depth (in): 1-21/32''
- General
Frequency Response: 97Hz - 22kHz
Impedence: 4 Ohms
Sensitivity: 86dB /W(1m)
- Tweeter
Tweeter Type: 3/4'' Wide Range Silk Dome Tweeter
Application Type / Design Detail: Internal / Swivel Tweeter
Magnet Material: Ultra Low Distortion Magnet Design
- Woofer
Cone Material: Poly-Mica Cone
Motor Technology: Optimized Magnet
Voice Coil Type: Square-Wire Short Voice Coil
Cooling: Optimized Air-Flow Design
Magnet: High Grade Strontium Magnet
Mounting: Shallow Mounting Design
Frame: Stamped Steel Shallow Frame
|
 |

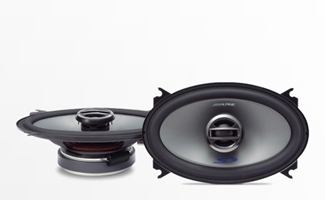

| ALPINE - SPS-406 |
|
| 4"x6" Coaxial 2-Way Speaker Set |
|
|
Type-S speakers feature a larger voice coil and silk soft-dome to produce high-quality sound. The new grille not only has a sleek aluminum look, but is also designed to help optimize sound by improving sound dispersion. The angle of the tweeter guard complements the angle of the surround guard, resulting in linear expansion of sound and less distortion of mid and high frequencies. Type-S coaxial speakers come in a variety of sizes to fit your vehicle - the ideal upgrade for your factory speakers!
- Power Handling
CEA-2031 Power Rating: 45 Watts
Power Handling Capacity (RMS): 45 Watts
Power Handling Capacity (Peak): 140 Watts
- Dimensions
Woofer Mounting Diameter (mm): 84.5 x 143.5mm
Woofer Mounting Diameter (in): 3-3/8'' x 5-3/4''
Woofer Mounting Depth (mm): 41.5mm
Woofer Mounting Depth (in): 1-21/32''
- General
Frequency Response: 93Hz - 22kHz
Impedence: 3.6 Ohms
Sensitivity: 87dB /W(1m)
- Tweeter
Tweeter Type: 3/4'' Wide Range Silk Dome Tweeter
Application Type / Design Detail: Internal / Swivel Tweeter
Magnet Material: Ultra Low Distortion Magnet Design
- Woofer
Cone Material: Poly-Mica Cone
Motor Technology: Optimized Magnet
Voice Coil Type: Square-Wire Short Voice Coil
Cooling: Optimized Air-Flow Design
Magnet: High Grade Strontium Magnet
Mounting: Shallow Mounting Design
Frame: Stamped Steel Shallow Frame
|
