| ALPINE - SWS-1223D and SWS-1243D |
|

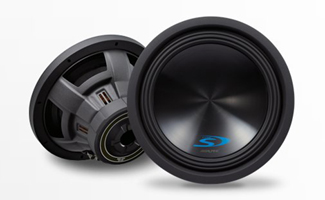

SWS-1223D: 12" Type-S Series Subwoofer
(2Ω+2Ω)
SWS-1243D: 12" Type-S Series Subwoofer
(4Ω+4Ω) |
|
|
Bass for your Space.
Want great performance from a sub that won't take up that much room? The new Alpine Type-S subwoofers feature a shallow mounting depth design, so you can get tight accurate bass in smaller spaces. An advanced airflow system including a stamped steel basket design with leg venting cooling keeps the bass going while keeping your sub cooler. Round out your system with the Type-S sub, and V-Power amplifier for the best match in performance.
- Gasket
Design: Concealed Mount Gasket System
- Tinsel Leads
Design: Reinforced Layer Spider Integration (Patent #6,810,988)
- Terminals
Design: Heavy Duty 8 gauge Push, Banana Plug Jumper
Layout: One Side
- Frame
Design: Perimeter Vented (Patent Pending)
Material: Custom High Strength Steel
- Motor Structure
Configuration: Airflow Optimized Extended/Vented Pole
Pole Geometry: Compound Radius Curve (Patent #6,639,993)
- Voice Coil
Design: 4-Layer Dual Coil
Material: 180°C High Temp Wire on Glass Fiber (TIL) Former
- Spider
Design: Progressive
Material: Nomex®
- Surround
Design: High Excursion Tapered Half-Roll
Material: Injected Molded Santoprene®
- Diaphram
Design: 1-Piece Parabolic
Material: Glass Fiber with Kevlar Reinforced Pulp Fiber
- General
Frequency Response: 27Hz - 700Hz
- Dimensions
Added Volume: 0.082 cu. ft. (Reverse Mount, Magnet Out)
Displacement: 0.084 cu. ft. (Front Mount)
Mounting Diameter: 289 mm (11.4")
Mounting Depth: 127 mm(5")
- Power Handling
Peak Power Handling: 900 Watts
RMS Power Handling: 300 Watts
Power Range: 50 - 300 Watts
|
|
| ALPINE - SWS-1023D and SWS-1043D |
|

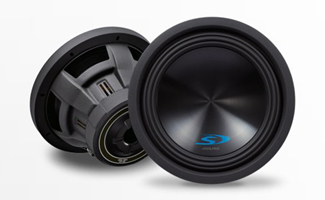

SWS-1023D: 10" Type-S Series Subwoofer
(2Ω+2Ω)
SWS-1043D: 10" Type-S Series Subwoofer
(4Ω+4Ω) |
|
|
Bass for your Space.
Want great performance from a sub that won't take up that much room? The new Alpine Type-S subwoofers feature a shallow mounting depth design, so you can get tight accurate bass in smaller spaces. An advanced airflow system including a stamped steel basket design with leg venting cooling keeps the bass going while keeping your sub cooler. Round out your system with the Type-S sub, and V-Power amplifier for the best match in performance.
- Gasket
Design: Concealed Mount Gasket System
- Tinsel Leads
Design: Reinforced Layer Spider Integration (Patent #6,810,988)
- Terminals
Design: Heavy Duty 8 gauge Push, Banana Plug Jumper
Layout: One Side
- Frame
Design: Perimeter Vented (Patent Pending)
Material: Custom High Strength Steel
- Motor Structure
Configuration: Airflow Optimized Extended/Vented Pole
Pole Geometry: Compound Radius Curve (Patent #6,639,993)
- Voice Coil
Design: 4-Layer Dual Coil
Material: 180°C High Temp Wire on Glass Fiber (TIL) Former
- Spider
Design: Progressive
Material: Nomex®
- Surround
Design: High Excursion Tapered Half-Roll
Material: Injected Molded Santoprene®
- Diaphram
Design: 1-Piece Parabolic
Material: Glass Fiber with Kevlar Reinforced Pulp Fiber
- General
Frequency Response: 30Hz - 700Hz
- Dimensions
Added Volume: 0.055 cu. ft. (Reverse Mount, Magnet Out)
Displacement: 0.050 cu. ft. (Front Mount)
Mounting Diameter: 244 mm (9.6")
Mounting Depth: 110 mm (4.3")
- Power Handling
Peak Power Handling: 900 Watts
RMS Power Handling: 300 Watts
Power Range: 50 - 300 Watts
|
