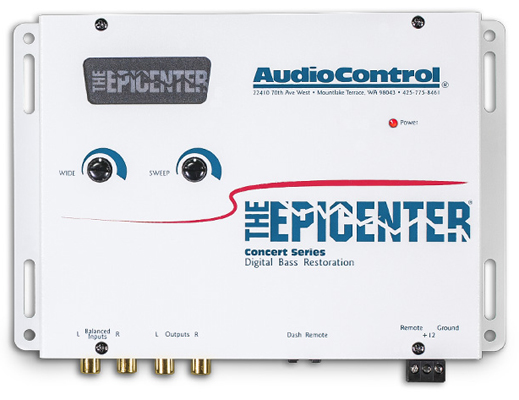

Your MP3 player thinks your car stereo is a pair of headphones, so it removes the bass! The Epicenter restores the earth-shaking power and heart-pounding bass your subwoofers crave.

Give your subwoofers the juice to go lower and hit harder. The Epicenter uses a bass circuit to drive your subwoofers lower, grabbing the attention of every eye on the boulevard.

FEATURES

• Patented Bass Maximizer�™
• Dash mount control
• Bass restoration lighted display
• Parametric bass control
• PFM Subsonic Filter
• Balanced inputs
• Bass Output Control

SPECIFICATIONS

INPUTS

• Preamp Inputs: 1 (2 channels)
• Maximum Input Level: 15Vrms
• Input Impedance: 10kO

PERFORMANCE

• Total Harmonic Distortion: 0.003%
• Frequency Response: 10Hz-100kHz
• Signal to Noise: 110dB

OUTPUTS

• Preamp Outputs: 1 (2 channels)
• Maximum Output Level: 13.5Vrms
• Output Impedance: 150O

CONTROL

• Remote In

GENERAL

• Power Supply: High Headroom PWM Switching
• Current Draw: 150mA
• Recommended Fuse Rating: 1A

WEIGHTS & DIMENSIONS

• Dimensions: 8?W x 5.5?D x 1.2?H
• Weight: 3.0lbs (1.4kg)

IN THE BOX: The Epicenter, ACR-1 Remote, Power Connector, Manual, Warranty
