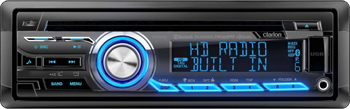

Introducing the CZ505 with an all-new sleek and sophisticated design that elevates you to the next level of car audio in style. The CZ505 uses high quality materials to create a sharp, high-tech appearance while maintaining ease of use.
TUNER
Frequency Bands: FM : (MHz) 0.2MHz steps : 87.9 to 107.9
AM : (kHz) 10 kHz steps : 530 to 1710
HD Radio® : Built-in HD Radio Tuner
FM usable sensitivity (dBf): 15
FM alternate channel selectivity (dB): 60
FM stereo separation @1 kHz (dB): 30
FM stereo freq. resp. @ ±3 dB (Hz): 30 to 15,000
Bluetooth®
Bluetooth Version: Bluetooth V2.1+EDR
Output Power: Power class 2
CONNECTION FOR USB
USB Requirements: USB 1.1/2.0
USB Class: Mass Storage Class
File System : FAT 12/16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows MediaT Audio
SATELLITE RADIO READY
SiriusXM-ReadyT : SXV-200/SXV-300 Required
Connection: Simple Plug'N Play Compatible
CD
S/N ratio (dB) : 94
Frequency response (Hz): 20 to 20,000
Dynamic range (dB): 93
Harmonic distortion (%): 0.1
AUDIO
Power Output (CEA2006 Power Ratings): 4 × 22W
GENERAL
Dimensions (W × H × D) (Inches): 7-2/5 × 2-7/25 × 7
Dimensions (W × H × D) (mm): 188 × 58 × 179
Remote control (W × H × D) (Approx Inches): 1-2/3 × 2/5 × 4-2/5
Remote control (W × H × D) (Approx mm): 42 × 10 × 112
Weight (Lbs): 2.97
Power Requirement: 14.4 DC (10.8 - 15.6 V allowable)
Power consumption: less than 15 A
Speaker Impedance: 4O (4O to 8O allowable)
Pre-Maximum Output Voltage: 4V / 10 kO
Maximum Mounting Angle: 30°

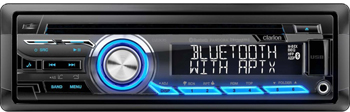

CLARION -CZ305
BLUETOOTH/CD/USB/MP3/WMA RECEIVER
TUNER
Frequency Bands : FM : (MHz) 0.2MHz steps : 87.9 to 107.9
AM : (kHz) 10 kHz steps : 530 to 1710
FM usable sensitivity (dBf) : 12
FM alternate channel selectivity (dB) : 60
FM stereo separation @1 kHz (dB) : 30
FM stereo freq. resp. @ ±3 dB (Hz) : 30 to 15,000
Bluetooth®
Bluetooth Version : Bluetooth V2.1+EDR
Output Power : Power class 2
CONNECTION FOR USB
USB Requirements : USB 1.1/2.0
USB Class : Mass Storage Class
File System : FAT 12/16/32
MP3 Decoding : MPEG-1/2 AUDIO Layer-3
WMA Decoding : Windows MediaT Audio
SATELLITE RADIO READY
SiriusXM-ReadyT : SXV-200/SXV-300 Required
Connection : Simple Plug'N Play Compatible
CD
S/N ratio (dB) : 94
Frequency response (Hz) : 20 to 20,000
Dynamic range (dB) : 93
Harmonic distortion (%) : 0.1
AUDIO
Power Output (CEA2006 Power Ratings) : 4 × 21W
GENERAL
Dimensions (W × H × D) (Inches) : 7-2/5 × 2-7/25 × 7
Dimensions (W × H × D) (mm) : 188 × 58 × 179
Remote control (W × H × D) (Approx Inches) : 1-2/3 × 2/5 × 4-2/5
Remote control (W × H × D) (Approx mm) : 42 × 10 × 112
Weight (Lbs) : 2.97
Power Requirement : 14.4 DC (10.8 - 15.6 V allowable)
Power consumption : less than 15 A
Speaker Impedance : 4O (4O to 8O allowable)
Pre-Maximum Output Voltage : 4V / 10 kO
Maximum Mounting Angle : 30°

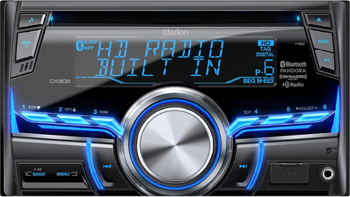

CLARION - CX505
2-DIN HD RADIO/ BLUETOOTH/ CD/ USB/ MP3/ WMA RECEIVER
TUNER
Frequency Bands : FM : (MHz) 0.2MHz steps : 87.9 to 107.9
AM : (kHz) 10 kHz steps : 530 to 1710
FM usable sensitivity (dBf) : 15
FM alternate channel selectivity (dB) : 60
FM stereo separation @1 kHz (dB) : 30
FM stereo freq. resp. @ ±3 dB (Hz) : 30 to 15,000
Bluetooth®
Bluetooth Version : Bluetooth V2.1+EDR
Output Power : Power class 2
CONNECTION FOR USB
USB Requirements : USB 1.1/2.0
USB Class : Mass Storage Class
File System : FAT 12/16/32
MP3 Decoding : MPEG-1/2 AUDIO Layer-3
WMA Decoding : Windows MediaT Audio
SATELLITE RADIO READY
SiriusXM-ReadyT : SXV-200/SXV-300 Required
Connection : Simple Plug'N Play Compatible
CD
S/N ratio (dB) : 94
Frequency response (Hz) : 20 to 20,000
Dynamic range (dB) : 93
Harmonic distortion (%) : 0.1
AUDIO
Power Output (CEA2006 Power Ratings) : 4 × 22W
GENERAL
Dimensions (W × H × D) (Inches) : 7-2/5 × 2-7/25 × 7
Dimensions (W × H × D) (mm) : 188 × 58 × 179
Remote control (W × H × D) (Approx Inches) : 1-2/3 × 2/5 × 4-2/5
Remote control (W × H × D) (Approx mm) : 42 × 10 × 112
Weight (Lbs) : 2.97
Power Requirement : 14.4 DC (10.8 - 15.6 V allowable)
Power consumption : less than 15 A
Speaker Impedance : 4O (4O to8O allowable)
Pre-Maximum Output Voltage : 2V / 10 kO
Maximum Mounting Angle : 30°

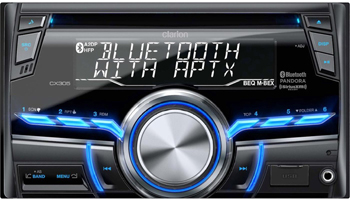

CLARION - CX305
2-DIN BLUETOOTH/CD/USB/MP3/WMA RECEIVER
TUNER
Frequency Bands : FM : (MHz) 0.2MHz steps : 87.9 to 107.9
AM : (kHz) 10 kHz steps : 530 to 1710
FM usable sensitivity (dBf) : 15
FM alternate channel selectivity (dB) : 60
FM stereo separation @1 kHz (dB) : 30
FM stereo freq. resp. @ ±3 dB (Hz) : 30 to 15,000
Bluetooth®
Bluetooth Version : Bluetooth V2.1+EDR
Output Power : Power class 2
CONNECTION FOR USB
USB Requirements : USB 1.1/2.0
USB Class : Mass Storage Class
File System : FAT 12/16/32
MP3 Decoding : MPEG-1/2 AUDIO Layer-3
WMA Decoding : Windows MediaT Audio
SATELLITE RADIO READY
SiriusXM-ReadyT : SXV-200/SXV-300 Required
Connection : Simple Plug'N Play Compatible
CD
S/N ratio (dB) : 94
Frequency response (Hz) : 20 to 20,000
Dynamic range (dB) : 93
Harmonic distortion (%) : 0.1
AUDIO
Power Output (CEA2006 Power Ratings) : 4 × 22W
GENERAL
Dimensions (W × H × D) (Inches) : 7-2/5 × 2-7/25 × 7
Dimensions (W × H × D) (mm) : 188 × 58 × 179
Remote control (W × H × D) (Approx Inches) : 1-2/3 × 2/5 × 4-2/5
Remote control (W × H × D) (Approx mm) : 42 × 10 × 112
Weight (Lbs) : 2.97
Power Requirement : 14.4 DC (10.8 - 15.6 V allowable)
