CLARION - M505
MARINE DIGITAL MEDIA RECEIVER WITH BUILT-IN BLUETOOTH

The M505 incorporates the Bluetooth aptX codec that is also incorporated in many AndroidT Phones. Since it restores the sound elements that are lost during digital compression of audio files, you can heve near CD quality sound. Now it's possible to listen to high quality audio with wireless convenience even while out on the water.

TUNER

  • Frequency Bands :
    FM : 87.9-107.9MHz steps auto/manual : 100/200kHz
    AM : 530-1710kHz steps auto/manual : 9/10kHz
  • FM usable sensitivity (dBf) : 8
  • FM alternate channel selectivity (dB) : 60
  • FM stereo separation @1 kHz (dB) : 30
  • FM stereo freq. resp. @ ±3 dB (Hz) : 30 to 15,000

AUDIO

  • Maximum Power Output : 50W × 4
  • Power Output (CEA2006 Power Ratings) : 20W × 4

GENERAL

  • Dimensions (W × H × D) (Inches) : 7-1/8 × 2 × 6-1/2
  • Dimensions (W × H × D) (mm) : 180 × 50 × 165
  • Power consumption : less than 15 A
  • Speaker impedance : 4O (4O to 8O allowable)

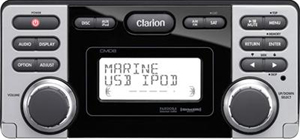

CLARION -CMD8
MARINE WATERTIGHT CD/USB/MP3/WMA RECEIVER

This model has been tested and certified to offer high protection against water intrusion and resistance to salt. Rubber gaskets and integrated drainage channels keep water out. Should any water get behind the panel, the integrated drip shield helps protect internal circuitry from the effects of moisture, corrosion and mildew.

TUNER

  • Frequency bands
  • FM: (MHz) 0.2MHz steps: 87.9 to 107.9
  • AM: (KHz) 10KHz steps: 530 to 1,710
  • FM usable sensitivity (dBf): 8
  • FM 50 dB quieting sensitivity (dBf): 17
  • FM alternate channel selectivity (dB): 60
  • FM stereo separation @1 (kHz) (dB): 30
  • FM stereo freq. resp. @ ±3 dB (Hz): 30 to 15,000

CD

  • S/N ratio (dB): 80
  • Frequency response (Hz): 20 to 20,000
  • Dynamic range (dB): 94
  • Harmonic distortion (%): 0.03

AUDIO

  • Power output (CEA2006 Power Ratings): 4 × 18W
  • Maximum Power Output: 4 x 45W

GENERAL

  • Dimensions (W × H × D) (Inches): 7-1/8 × 2 × 6-5/8
  • Dimensions (W × H × D) (mm): 181 × 50.8 × 168.3
  • Weight (Lbs): 4.56
  • Power consumption: less than: 15 A
  • Speaker impedance: 4 ohm to 8 ohm

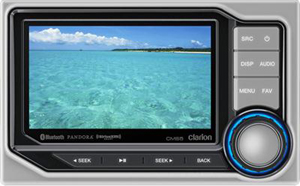

CLARION - CMS5
MARINE DIGITAL MEDIA RECEIVER
WITH 4.3-INCH COLOR LCD WATERTIGHT CONTROLLER WITH J1939 COMPATIBILITY

Clarion's CMS5 is the ultimate media hub that was developed to enhance the user interface and audio experience. The essentials including Bluetooth®, Dual 2.1A USB ports, Dedicated Rear Camera RCA Input, Marine Dual Zone, Source Volume Control and AM/FM/Weather Band Tuner are built in, and with a wide variety of connections including SiriusXM® Satellite Radio and USB you can easily create a system that can be customized to your exact needs.

TUNER

  • Frequency bands: FM/AM/Weather Band
  • FM Tuner with RDS
  • Frequency Range:
    USA 87.9 ~ 107.9MHz (0.2MHz STEP)
    Europe 87.5 ~ 108.0MHz (0.05MHz STEP)
    Australia 87.5 ~ 108.0MHz (0.1MHz STEP)
  • AM Tuner with RDS
  • Frequency Range:
    USA 530 ~ 1710kHz (10kHz STEP)
    Europe 531 ~ 1602kHz (9kHz STEP)
    Australia 531 ~ 1629kHz (9kHz STEP)
  • Weather Band
  • NOAA Frequency Range: 162.400MHz ~ 162.550MHz
  • Channel 1: 162.400MHz
  • Channel 2: 162.425MHz
  • Channel 3: 162.450MHz
  • Channel 4: 162.475MHz
  • Channel 5: 162.500MHz
  • Channel 6: 162.525MHz
  • Channel 7: 162.550MHz

AUDIO

  • Maximum Power Output: 50W x 4
  • Rated Power Output: 21W x 4 (CEA2006) 1% THD, 1 kHz @ 14.4V
  • High Pass Filter (Front/Rear): 70/105/140/THROUGH (Speaker and RCA)
  • Low Pass Filer (Subwoofer): 50/75/100/THROUGH
  • BASS Control: 50Hz Frequency, +14dB ~ -14dB
  • MID Control: 1k Frequency, +14dB ~ -14dB
  • TREBLE Control: 12kHz Frequency, +12dB ~ -12dB

GENERAL

  • Black Box Dimensions (W × H × D) (Inches): 8 × 7 × 2
  • Black Box Dimensions (W × H × D) (mm): 203.2 × 177.8 × 50.8
  • Watertight Controller (W × H × D) (Approx Inches): 6 × 4 × 1
  • Watertight Controller (W × H × D) (Approx mm): 152.4 × 101.6 × 25.4
  • Power consumption: less than: 5.5mA when ACC=OFF
  • Speaker impedance: 4 ohm ~ 8 ohm
  • Ingress Protection (IP) Rating:
    Black Box: IP66
    Controller: IP67
    Connectors: IP67
  • ASTM B117 (Salt/Fog Exposure) = Black Box and Controller
  • ASTM D4329 (UV Exposure) = Black Box and Controller
  • SAE J1939 Specifications:
    Broadcast Type: Open @ 29-Bit
    Bandwidth: 500Kb/s
    Clock: 1MB/s
    Connector: 9-pin, IP67
  • Display Controller
    LCD: 4.3" Optically Bonded Color
    Resolution: 480 x 272
    Luminance: 650 NITS

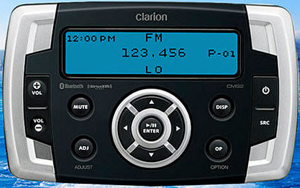

CLARION - CMS2
DIGITAL MEDIA RECIEVER WITH WATERTIGHT COMMANDER

Clarion's CMS2 is a digital media hub that has been designed specifically for boats with a compact Black Box and weather protected controller. The essentials including Bluetooth® for Stereo Streaming and AM/FM/Weather Band are built in, with a wide variety of connections including SiriusXM® Satellite Radio, AUX and USB so you can create a system that gives you a custom audio listening experience.

TUNER

  • Frequency bands: FM/AM/Weather Band
  • FM Tuner
  • Frequency Range: USA 87.9 ~ 107.9MHz (0.2MHz STEP) Europe 87.5 ~ 108.0MHz (0.05MHz STEP) Australia 87.5 ~ 108.0MHz (0.01MHz STEP)
  • AM Tuner with RDS
  • Frequency Range: USA 530 ~ 1710kHz (10kHz STEP) Europe 531 ~ 1602kHz (9kHz STEP) Australia 531 ~ 1629kHz (9kHz STEP)
  • Weather Band
  • NOAA Frequency Range: 162.400MHz ~ 162.550MHz
  • Channel 1: 162.400MHz
  • Channel 2: 162.425MHz
  • Channel 3: 162.450MHz
  • Channel 4: 162.475MHz
  • Channel 5: 162.500MHz
  • Channel 6: 162.525MHz
  • Channel 7: 162.550MHz

AUDIO

  • Power output (CEA2006 Power Ratings): 20W × 4
  • Maximum Power Output: 50W × 4

GENERAL

  • Black Box Dimensions (W × H × D) (Inches): 6.87 × 2.02 × 6.78
  • Black Box Dimensions (W × H × D) (mm): 174.5 × 51.3 × 172.2
  • Watertight Controller (W × H × D) (Inches): 5.25 × 3.25 × 1
  • Watertight Controller (W × H × D) (mm): 133.3 × 82.6 × 25.4
  • Power Supply Voltage: 14.4V DC(10.8 to 15.6V allowable)
  • Grounding Sytem: Negative Ground
  • Speaker impedance: 4 - 8 ohm per channel

CLARION - M303
MARINE BLUETOOTH/ CD/ USB/ MP3/ WMA RECEIVER

Built-in Parrot Bluetooth provides hands-free calling, with comprehensive compatibility to a variety of mobile phones. With a built-in microphone and Phonebook access, you can safely talk and drive at the same time. Play music stored on your mobile phone with Bluetooth stereo audio streaming.

TUNER

  • Frequency bands
  • FM: (MHz) 0.2MHz steps: 87.9 to 107.9
  • AM: (KHz) 10KHz steps: 530 to 1,710
  • FM usable sensitivity (dBf): 8
  • FM 50 dB quieting sensitivity (dBf): 17
  • FM alternate channel selectivity (dB): 60
  • FM stereo separation @1 (kHz) (dB): 30
  • FM stereo freq. resp. @ ±3 dB (Hz): 30 to 15,000

CD

  • S/N ratio (dB): 94
  • Frequency response (Hz): 20 to 20,000
  • Dynamic range (dB): 94
  • Harmonic distortion (%): 0.1

AUDIO

  • Maximum Power Output: 4 x 45W
  • Power output (CEA2006 Power Ratings): 4 × 18W

GENERAL

  • Dimensions (W × H × D) (Inches): 7-2/5 × 2-7/25 × 7-12/25
  • Dimensions (W × H × D) (mm): 188 ×58 × 190
  • Weight (Lbs): 2.97
  • Power consumption: less than: 15A
  • Speaker impedance: 4 ohm to 8 ohm

CLARION - M505
MARINE DIGITAL MEDIA RECEIVER WITH BUILT-IN BLUETOOTH

An audio system designed specifically for a boat environment, and it also looks wonderfully attractive. The two-line LCD display is able to show the information you need. And connectors have a protective cover to inhibit corrosion and damage. More information, more entertainment, nothing to worry about.

TUNER

  • Frequency Bands : FM/AM
    FM : 87.9-107.9MHz steps auto/manual : 100/200kHz
    AM : 530-1710kHz steps auto/manual : 9/10kHz
  • FM usable sensitivity (dBf):  8
  • FM alternate channel selectivity (dB):  60
  • FM stereo separation @1 kHz (dB):  30
  • FM stereo freq. resp. @ ±3 dB (Hz):  30 to 15,000

AUDIO

  • Maximum Power Output:  50W × 4
  • Power Output (CEA2006 Power Ratings):  20W × 4

GENERAL

  • Dimensions (W × H × D) (Inches):  7-1/8 × 2 × 6-1/2
  • Dimensions (W × H × D) (mm):  180 × 50 × 165
  • Power consumption:  less than 15 A
  • Speaker impedance:  4O (4O to 8O allowable)
