The three Flax subwoofers consist of straightforward 4-Ohm voice coils which are perfectly suited for small enclosures (closed or bass-reflex). Several innovations raise their performance to an even higher level. Each model of subwoofer has a dual magnet, offering improved linearity and ensuring optimal magnetic power delivered to the voice coil, which features a new cooling system. Glass fibre has been used for the mounting of the voice coil, making it more robust while protecting the cone from the heat emitted. Last but not least, the new fixings connecting the cone to the voice coil and the spider to the basket improve reliability for extreme use (very high excursion).
FOCAL - Sub P 20 F
FLAX CONE / 8″ Subwoofer
P20F is a 20cm (8″) subwoofer equipped with 320 gr/m² Flax cone for deep and controlled bass. It can work in both 10-liter-closed and 13-liter-bass-reflex cabinets. It provides 250-Watts RMS and a frequency response from 39 to 500Hz. This subwoofer is ideal for a small bass enclosure perfectly integrated in the vehicle.
ADVANTAGES
“Dual Magnet” for more power
FLAX® technology for an exclusive con
High rigidity for deep and controlled bass
Improved excursion thanks to the new suspension
Optimised cooling of the voice coil
The best compromise for a small seal enclosure volume using (0.35 Cu ft – 10L)
SPECIFICATIONS
Woofer : 8" (200mm)
Voice-coil : 2″ (50mm)
Voice-coil height : 1-1/8″ (28mm)
Magnet : 4-3/4″ (120mm)
max power : 500 W
nominal power : 250 W RMS
sensitivity : 82.5dB
impedance : 4 Ohms
frequency response : 39Hz – 500Hz

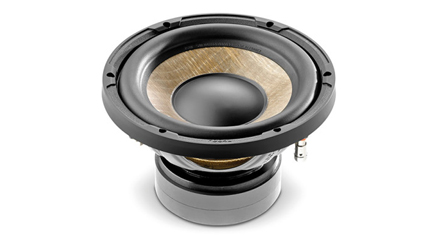

FOCAL - Sub P 25 F
FLAX CONE / 10″ Subwoofer
P25F is a 25cm (10″) subwoofer designed for a 18,4-liter- closed cabinet or a 25-liter- bass-reflex one. It is equipped with a very rigid Flax cone of 320 gr/m² which guarantees deep, powerful and linear bass. Its power is 300 Watts RMS and its frequency response goes from 33 to 500Hz. P25F Flax subwoofer represent a good compromise between bass pleasure and cabinet volume. The reference in the bass world!
ADVANTAGES
“Dual Magnet” for more power
FLAX® technology for an exclusive cone
14mm Xmax
High rigidity for deep and controlled bass
Improved excursion thanks to the new suspension
Optimised cooling of the voice coil
The best compromise for a small seal enclosure volume using (0.35 Cu ft – 10L
SPECIFICATIONS
Woofer : 10″ (250mm)
Voice-coil : 2″ (50mm)
Voice-coil height : 1-3/8″ (35mm)
Magnet : 5-11/16″ (145mm)
max power : 600 W
nominal power : 300 W RMS
sensitivity : 85dB
impedance : 4 Ohms
frequency response : 33Hz – 500Hz

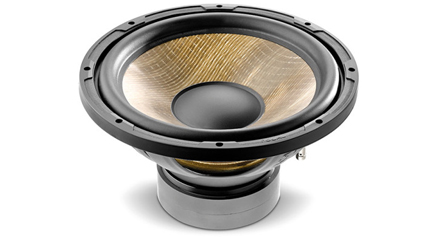

FOCAL - Sub P 30 F
FLAX CONE / 12″ Subwoofer
P30F is a 30cm (12″) subwoofer designed for a 28,3-liter-closed cabinet or a 40-liter-bass-reflex one. Regarding the performances, it announces 400 Watts RMS and a frequency response from 27 to 500Hz. The largest of the other 2 Flax subwoofers, it provides powerful bass without compromise and high SPL. Performance and high acoustic pressure lovers will be won over by this subwoofer!
ADVANTAGES
“Dual Magnet” for more power
FLAX® technology for an exclusive cone
14mm Xmax
High rigidity for deep and controlled bass
Improved excursion thanks to the new suspension
Optimized cooling of the voice coil
The best compromise for a small seal enclosure volume using (0.35 Cu ft – 10L)
