| FOCAL - Utopia Beryllium Line |
|

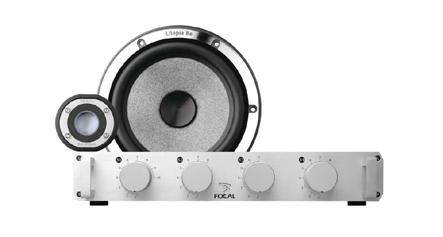

| Utopia Be N°5 |
|
|
2 way 130mm (5") kit, Crossblock separate crossover (passive version), grilles included. The defining standard with the most accurate sound reproduction of midrange and high frequencies. Woofer addition is advised.
- 2-way, 5" (13cm) "W" woofer , 1" (2,5cm) Beryllium tweeter
- Frequency response (+/- 3 dB) 75 Hz - 40 kHz
- Nom. power handling 75 W
- Sensitivity (2,83V/1 m) 89,5 dB
- Nom. Impedance 4 ohms
- Voice Coil Diameter 32 mm
- Voice Coil Height 13 mm
- Xmax 3,5 mm
This system is also available as N°5 Active Version (with Crossblock filter)
|
 |
| FOCAL - Utopia Beryllium Line |
|

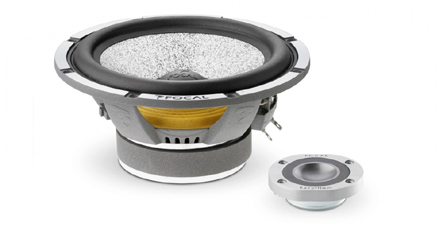

| Utopia Be N°6 |
|
|
2 way 165mm (6.5") kit, separate crossover (passive version), grilles included. The defining standard dedicated to the most accurate sound reproduction in the low, midrange and high frequencies.
- 2-way, 5" (13cm) "W" woofer , 1" (2,5cm) Beryllium tweeter
- Frequency response (+/- 3 dB) 66 Hz - 44 kHz
- Nom. power handling 100 W
- Sensitivity (2,83V/1 m) 91,5 dB
- Nom. Impedance 4 ohms
- Voice Coil Diameter 40 mm
- Voice Coil Height 15 mm
- Xmax 4,5 mm
This system is also available as N°6 Active Version (with Crossblock filter)
|
 |
| FOCAL - Utopia Beryllium Line |
|
| Utopia Be N°7 |
|
|
3 way 165mm (6.5") kit, 80mm (3") midrange driver, Crossblock separate crossover (passive version), grilles included. The defining standard combines outstanding sound reproduction quality in both low, midrange and high frequencies and allowing multiple midrange driver and tweeter mounting positions for optimal sound staging.
- 3-way, 6-1/2" (16,5cm) "W" woofer, 3" (8cm) "W" midrange, 1" (2,5cm) Beryllium tweeter
- Frequency response(+/- 3 dB) 55 Hz - 40 kHz
- Nom. power handling 100 W
- Sensitivity (2,83V/1 m) 89 dB
- Nom. Impedance 4 ohms
- Voice Coil Diameter 40 et 25 mm
- Voice Coil Height 17 et 8 mm
- Xmax 5,5 mm
This system is also available as N°7 Active Version (with Crossblock filter) |
