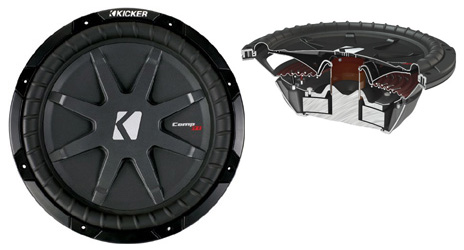

KICKER CompRT SUBWOOFER
Model: 12", 10", 8", 6 3/4"

CompRTT Subwoofers have reduced what were already the thinnest mounting depths available from the world's bass leader, taking almost another inch off the shallow-mount driver's basket suitable for the trickiest installations. It's true, deep bass that's made to fit where conventional-sized subwoofers don't.

CRT 12"

  • Size (in, cm): 12, 30
  • Impedance (Ohms): 1 or 2 DVC
  • Max. Rec. Amp. Power Watts (Peak/RMS): 1600/800
  • Sensitivity (dB @ 1W, 1m): 87.1
  • Mounting Depth (in, cm): 3-3/4, 9.6
  • Mounting Diameter (in, cm): 11, 27.9
  • Min Sealed Box Vol (cu. ft, L): 0.55, 15.57
  • Max Sealed Box Vol (cu. ft, L): 3.0, 85
  • Min Vented Box Vol (cu. ft, L): 1.75, 49.6
  • Max Vented Box Vol (cu. ft, L): 2.25, 63.7

CRT 10"

  • Size (in, cm): 12, 30 10, 25 8, 20 6-3/4, 16.5
  • Impedance (Ohms): 1 or 2 DVC 1 or 2 DVC 1 or 2 DVC 1 or 2 DVC
  • Max. Rec. Amp. Power Watts (Peak/RMS): 1600/800 1200/600 800/400 300/150
  • Sensitivity (dB @ 1W, 1m): 87.1 87.2 84.8 84.6
  • Mounting Depth (in, cm): 3-3/4, 9.6 3-7/16, 8.8 2-11/16, 6.7 2-3/4, 7
  • Mounting Diameter (in, cm): 11, 27.9 9-1/8, 23.1 7, 17.7 5-9/16, 14.1
  • Min Sealed Box Vol (cu. ft, L): 0.55, 15.57 0.4, 11.3 0.2, 5.66 0.18, 5.1
  • Max Sealed Box Vol (cu. ft, L): 3.0, 85 2.0, 56.63 1.25, 35.4 0.75, 21.4
  • Min Vented Box Vol (cu. ft, L): 1.75, 49.6 1.25, 35.4 0.8, 22.7 -
  • Max Vented Box Vol (cu. ft, L): 2.25, 63.7 1.75, 49.6 1.2, 34 -

CRT 8"

  • Size (in, cm): 12, 30 10, 25 8, 20 6-3/4, 16.5
  • Impedance (Ohms): 1 or 2 DVC 1 or 2 DVC 1 or 2 DVC 1 or 2 DVC
  • Max. Rec. Amp. Power Watts (Peak/RMS): 1600/800 1200/600 800/400 300/150
  • Sensitivity (dB @ 1W, 1m): 87.1 87.2 84.8 84.6
  • Mounting Depth (in, cm): 3-3/4, 9.6 3-7/16, 8.8 2-11/16, 6.7 2-3/4, 7
  • Mounting Diameter (in, cm): 11, 27.9 9-1/8, 23.1 7, 17.7 5-9/16, 14.1
  • Min Sealed Box Vol (cu. ft, L): 0.55, 15.57 0.4, 11.3 0.2, 5.66 0.18, 5.1
  • Max Sealed Box Vol (cu. ft, L): 3.0, 85 2.0, 56.63 1.25, 35.4 0.75, 21.4
  • Min Vented Box Vol (cu. ft, L): 1.75, 49.6 1.25, 35.4 0.8, 22.7 -
  • Max Vented Box Vol (cu. ft, L): 2.25, 63.7 1.75, 49.6 1.2, 34 -

CRT 6 3/4"

  • Size (in, cm): 6-3/4, 16.5
  • Impedance (Ohms): 1 or 2 DVC
  • Max. Rec. Amp. Power Watts (Peak/RMS): 300/150
  • Sensitivity (dB @ 1W, 1m): 84.6
  • Mounting Depth (in, cm): 2-3/4, 7
  • Mounting Diameter (in, cm): 5-9/16, 14.1
  • Min Sealed Box Vol (cu. ft, L): 0.18, 5.1
  • Max Sealed Box Vol (cu. ft, L): 0.75, 21.4

FEATURES:

  • True shallow-mount subwoofer great for compact cars or even motorcycle saddlebags
  • Suitable for the trickiest installations
  • Available in 1- or 2-Ohm DVC
  • Works best with KICKER KX-Series Amplifiers
  • Large-diameter, progressive-roll spider
  • Inverted-bumped back plate and bumped top plate for full voice-coil clearance and excursion
  • High-temp coil wire winding around a high-mass, solid pole piece
  • Double venting for max cool
  • Injection-molded polypropylene cone and tough SantropreneŽ surround that interlocks with front gasket
  • Dual pair of spring-loaded wire terminals custom-designed for shallow mount
  • Weather-proof for outdoor powersports applications
