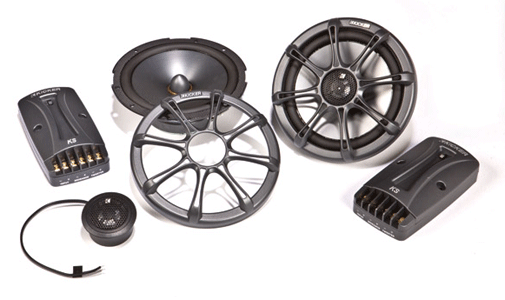

KICKER KS SERIES
10 Sizes

MODEL KS35

  • Woofer (in., cm): 3-1/2, 8.9
  • Tweeter (in., cm): 1/2, 1.3
  • Impedance (Ohms): 4
  • Max Rec Amp Power (watts PEAK/RMS)*: 40/20
  • Sensitivity (dB 1w/1m): 88
  • Frequency Response (Hz): 80-20k
  • Mounting Hole Diameter (in., cm): 3-3/16, 8.1
  • Mounting Depth (in., cm): 1-9/16, 4.0
  • Grilles: No

MODEL KS40

  • Woofer (in., cm): 4, 10.0
  • Tweeter (in., cm): 1/2, 1.3
  • Impedance (Ohms): 4
  • Max Rec Amp Power (watts PEAK/RMS)*: 60/30
  • Sensitivity (dB 1w/1m): 88
  • Frequency Response (Hz): 60-20k
  • Mounting Hole Diameter (in., cm): 3-11/16, 9.4
  • Mounting Depth (in., cm): 1-13/16, 4.6
  • Grilles: Yes

MODEL KS410

  • Woofer (in., cm): 4x10, 10.0x25.0
  • Tweeter (in., cm): 1/2, 1.3
  • Impedance (Ohms): 4
  • Max Rec Amp Power (watts PEAK/RMS)*: 70/35
  • Sensitivity (dB 1w/1m): 88
  • Frequency Response (Hz): 45-20k
  • Mounting Hole Diameter (in., cm): 3-7/8x9-5/16, 9.8x23.7
  • Mounting Depth (in., cm): 2-7/16, 6.2
  • Grilles: No

MODEL KS46

  • Woofer (in., cm): 4x6, 10.0x15.0
  • Tweeter (in., cm): 1/2, 1.3
  • Impedance (Ohms): 4
  • Max Rec Amp Power (watts PEAK/RMS)*: 60/30
  • Sensitivity (dB 1w/1m): 88
  • Frequency Response (Hz): 50-20k
  • Mounting Hole Diameter (in., cm): 3-1/2x5-3/4, 8.9x14.6
  • Mounting Depth (in., cm): 1-13/16, 4.6
  • Grilles: No

MODEL KS525

  • Woofer (in., cm): 5-1/4, 13.0
  • Tweeter (in., cm): 3/4, 2.0
  • Impedance (Ohms): 4
  • Max Rec Amp Power (watts PEAK/RMS)*: 135/45
  • Sensitivity (dB 1w/1m): 90
  • Frequency Response (Hz): 45-21k
  • Mounting Hole Diameter (in., cm): 4-9/16, 11.6
  • Mounting Depth (in., cm): 2, 5.1
  • Grilles: Yes

MODEL KS60

  • Woofer (in., cm): 6, 16.0
  • Tweeter (in., cm): 3/4, 2.0
  • Impedance (Ohms): 4
  • Max Rec Amp Power (watts PEAK/RMS)*: 195/65
  • Sensitivity (dB 1w/1m): 90
  • Frequency Response (Hz): 43-21k
  • Mounting Hole Diameter (in., cm): 5, 12.7
  • Mounting Depth (in., cm): 1-15/16, 4.9
  • Grilles: Yes

MODEL KS65

  • Woofer (in., cm): 6-1/2, 16.5
  • Tweeter (in., cm): 3/4, 2.0
  • Impedance (Ohms): 4
  • Max Rec Amp Power (watts PEAK/RMS)*: 195/65
  • Sensitivity (dB 1w/1m): 90
  • Frequency Response (Hz): 40-21k
  • Mounting Hole Diameter (in., cm): 5-5/8, 14.3
  • Mounting Depth (in., cm): 2-1/8, 5.4
  • Grilles: Yes

MODEL KS68

  • Woofer (in., cm): 6x8, 16x20.0
  • Tweeter (in., cm): 3/4, 2.0
  • Impedance (Ohms): 4
  • Max Rec Amp Power (watts PEAK/RMS)*: 180/60
  • Sensitivity (dB 1w/1m): 90
  • Frequency Response (Hz): 45-21k
  • Mounting Hole Diameter (in., cm): 5x7, 12.7x17.8
  • Mounting Depth (in., cm): 2-3/8, 6.0
  • Grilles: No

MODEL KS69

  • Woofer (in., cm): 6x9, 16x23.0
  • Tweeter (in., cm): 1, 2.5
  • Impedance (Ohms): 4
  • Max Rec Amp Power (watts PEAK/RMS)*: 270/90
  • Sensitivity (dB 1w/1m): 92
  • Frequency Response (Hz): 30-21k
  • Mounting Hole Diameter (in., cm): 6x8-9/16, 15.2x21.7
  • Mounting Depth (in., cm): 3-3/16, 8.1
  • Grilles: Yes

MODEL KS693

  • Woofer (in., cm): 6x9, 16x23.0
  • Mid (in., cm): 1, 2.5
  • Tweeter (in., cm): 3/4, 2.0
  • Impedance (Ohms): 4
  • Max Rec Amp Power (watts PEAK/RMS)*: 300/100
  • Sensitivity (dB 1w/1m): 92
  • Frequency Response (Hz): 30-21k
  • Mounting Hole Diameter (in., cm): 6x8-9/16, 15.2x21.7
  • Mounting Depth (in., cm): 3-3/16, 8.1
  • Grilles: Yes

*Assumes typical music program with minimal clipping; varies with enclosure size. See your KICKER dealer for details.

COAXIALS

  • Drop-in factory upgrade for easy fitment into any vehicle
  • Massive motor structure provides ultimate power handling, high efficiency and premium performance
  • Extended Voice Coil (EVCT) technology for high excursion and superior bass response
  • Tapered curvilinear polymer cone with SantopreneŽ surround provides smooth transition from mid to high frequencies for accurate reproduction of the complete audio bandwidth
  • Calibrated-dome tweeters with phase alignment reveal every detail
