Max Rec Amplifier Power (WATTS PEAK/RMS)* 2000/1000
Sensitivity (dB 1w/1m) 89.4
Frequency Response (Hz) 18-100
Mounting Depth (IN.,CM) 8-11/16, 22.1
Mounting Cutout, Square (IN.,CM) 13-3/4, 34.9
Min Rec Sealed Box Volume (CU. FT., Liters) 1.5, 42.5
Max Rec Sealed Box Volume (CU. FT., Liters) 6.0, 169.9
Min Rec Vented Box Volume (CU. Ft., Liters)** 3.0, 85.0
Max Rec Vented Box Volume (CU. Ft., Liters)** 6.0, 169.9
12"
Size (IN.,CM) 12, 30.5
Impedance (OHMS) 2 or 4 DVC
Max Rec Amplifier Power (WATTS PEAK/RMS)* 1500/750
Sensitivity (dB 1w/1m) 88.6
Frequency Response (Hz) 20-100
Mounting Depth (IN.,CM) 6-11/16, 16.9
Mounting Cutout, Square (IN.,CM) 11-1/16, 28.1
Min Rec Sealed Box Volume (CU. FT., Liters) .88, 24.9
Max Rec Sealed Box Volume (CU. FT., Liters) 2.0, 56.6
Min Rec Vented Box Volume (CU. Ft., Liters)** 1.75, 49.6
Max Rec Vented Box Volume (CU. Ft., Liters)** 3.25, 92.1
10"
Size (IN.,CM) 10, 25.4
Impedance (OHMS) 2 or 4 DVC
Max Rec Amplifier Power (WATTS PEAK/RMS)* 1200/600
Sensitivity (dB 1w/1m) 86.8
Frequency Response (Hz) 24-100
Mounting Depth (IN.,CM) 6-1/4, 15.9
Mounting Cutout, Square (IN.,CM) 9-5/16, 23.7
Min Rec Sealed Box Volume (CU. FT., Liters) .66, 18.7
Max Rec Sealed Box Volume (CU. FT., Liters) 1.0, 28.3
Min Rec Vented Box Volume (CU. Ft., Liters)** 1.25, 35.4
Max Rec Vented Box Volume (CU. Ft., Liters)** 2.25, 63.8
8"
Size (IN.,CM) 8, 20.32
Impedance (OHMS) 2 or 4 DVC
Max Rec Amplifier Power (WATTS PEAK/RMS)* 900/450
Sensitivity (dB 1w/1m) 83.6
Frequency Response (Hz) 28-100
Mounting Depth (IN.,CM) 4-3/4, 12.1
Mounting Cutout, Square (IN.,CM) 7-1/4, 18.4
Min Rec Sealed Box Volume (CU. FT., Liters) .33, 9.4
Max Rec Sealed Box Volume (CU. FT., Liters) .75, 21.2
Min Rec Vented Box Volume (CU. Ft., Liters)** .66, 18.6
Max Rec Vented Box Volume (CU. Ft., Liters)** 1.0, 28.3
FEATURES:
Square vs. Round: More cone area results in greater sound pressure produced by the woofer

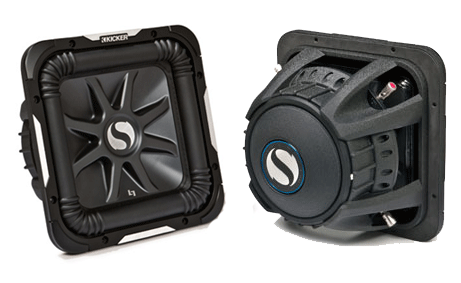

The massive motor structure of the L7 paired with KICKER's patented square-woofer technology provides extreme output capability
Heat-sinking cast aluminum basket provides a strong motor foundation and maintains low temperatures during long-term operation
Injection-molded SoloKonT is our most advanced cone design, adding targeted strength for reliable performance and accurate response
Patented corner-ribbed, double-stitched SantopreneŽ surround provides durability at high excursion with uncompromised sound quality
360° constant-contact back bracing adheres directly to every contour of the cone to maximize mechanical coupling of the motor, maintaining precise linear excursion while making the woofer as strong and responsive as possible
Heavy-duty speaker leads are stitched and glued to the spider rolls for reliable performance when pushed to the limits
Progressive-roll spider keeps stress away from the glue joint of the spider landing for long-lasting reliability
Venting in the back-bracing of the cone and perimeter of the spider landing provides maximum air-flow to cool the voice-coil during operation
Dual Voice Coils with high-temp copper windings handle extreme power levels for long durations without burning out
T-cut top plate extends the magnetic field of the motor, adding balanced motor strength throughout the entire excursion path of the voice coil
Solid-dome extended pole piece maintains precise voice-coil control and aids in heat dissipation
