ILLUSION ELECTRA SPEAKERS
To develop this new Illusion Audio speaker line we combined our decades of experience manufacturing high-end audiophile speakers with our passion for maximum performance mobile audio. The development process covered several years and literally months of listening to each individual model to fine tune musical quality and durability. We applied the highest available technologies in construction materials, Finite Element Analysis engineering and manufacturing to develop speakers that are compact and lightweight for easy installation without making any performance compromises. Our artistic design team has paid careful attention to aesthetics, as we feel they are beautiful speakers too!
1
2
 |

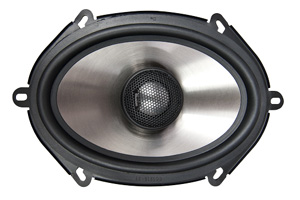

| ELECTRA E57 CX |
|
| Coaxial Kit |
|
|
COAX
- Aluminum coated injection polypropylene cone with rubber surround powder coated steel basket
- Free Air Resonance: 61.15 Hz
- Nominal Impedance: 4 Ohms
- Sensitivity 2.83 v @ 1 meter: 91.4
- Outside Diameter: 194 x 133 mm
- Mounting Hole Diameter: 180 x 127 mm
- Mount Depth: 61 mm
- Coaxial Tweeter
- 4 ohm
- Integrated 6dB crossover
- Polyester capacitor
- Tweeter overload protection
- Maximum Linear Excursion: ± 4 mm
|
 |

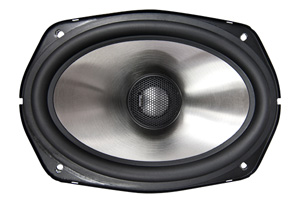

| ELECTRA E69 CX |
|
| Coaxial Kit |
|
|
COAX
- Aluminum coated injection polypropylene cone with rubber surround powder coated steel basket
- Free Air Resonance: 50.77 Hz
- Nominal Impedance: 4 Ohms
- Sensitivity 2.83 v @ 1 meter: 88.2
- Outside Diameter: 243 x 173 mm
- Mounting Hole Diameter: 215 x 147 mm
- Mount Depth: 93 mm
- Coaxial Tweeter
- 4 ohm
- Integrated 6dB crossover
- Polyester capacitor
- Tweeter overload protection
- Maximum Linear Excursion: ± 5.5 mm
|
| |
| ELECTRA E10 |
|
| 10" Subwoofer |
|
|
SUBWOOFER
- Aluminum coated injection polypropylene cone with rubber surround powder coated steel basket
- Free Air Resonance: 28.84 Hz
- Nominal Impedance: 4 Ohms
- Sensitivity 2.83 v @ 1 meter: 86.3
- Outside Diameter: 257 mm
- Mounting Hole Diameter: 232 mm
- Mount Depth: 141 mm
- Recommended Sealed Enclosure Volume: 0.75 ft3
- Maximum Linear Excursion: ± 14 mm
|
| |
| ELECTRA E12 |
|
| 12" Subwoofer |
|
|
SUBWOOFER
- Aluminum coated injection polypropylene cone with rubber surround powder coated steel basket
- Free Air Resonance: 31.36 Hz
- Nominal Impedance: 4 Ohms
- Sensitivity 2.83 v @ 1 meter: 87.2
- Outside Diameter: 312 mm
- Mounting Hole Diameter: 280 mm
- Mount Depth: 154 mm
- Recommended Sealed Enclosure Volume: 1.0 ft3
- Maximum Linear Excursion: ± 14 mm
|
