ILLUSION CARBON SPEAKERS

Carbon is Illusion's premier line utilizing the best technologies. They deliver audiophile sound quality combined with high loudness and extreme durability. Carbon sound quality is detailed, revealing, extremely dynamic and punchy. Bass is articulate and extended with good weight, revealing the rhythm and pace of the music. The low distortion, extreme clarity and enormous sound stage size bring the concert alive. You have never heard music this real in a vehicle before! Illusion Audio Carbon speakers are truly, "compact without compromise".

1    2

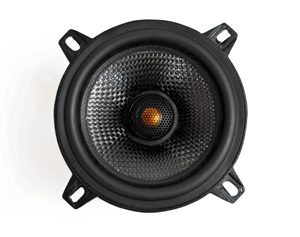

ILLUSION CARBON C4 CX
4" Coaxial Kit

COAX

  • Woven carbon fiber cone with rubber surround cast aluminum basket
  • Free Air Resonance: 78.6 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 V @ 1 meter: 89.2
  • Outside Diameter: 102 mm basket + 127 mm ears
  • Mounting Hole Diameter: 94 mm
  • Mount Depth: 53 mm
  • Point Source Tweeter
  • 14 mm anodized aluminum dome
  • Bi Amp 12 dB crossover
  • Maximum Linear Excursion: ± 5.5 mm

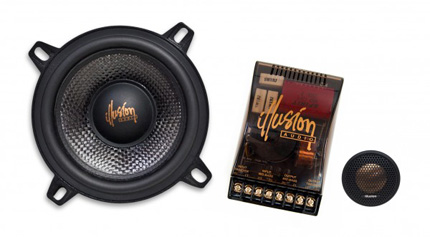

ILLUSION CARBON C4
4" Component Kit

MIDBASS

  • Woven carbon fiber cone with rubber surround cast aluminum basket
  • Free Air Resonance: 78.6 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 V @ 1 meter: 89.2
  • Outside Diameter: 102 mm basket + 127 mm ears
  • Mounting Hole Diameter: 94 mm
  • Mount Depth: 59 mm

TWEETER

  • 25 mm Beryllium Copper
  • 4 ohm
  • Outside Diameter: 48.2 mm
  • Mount Hole Diameter: 43.5 mm
  • Mount Depth: 24 mm

CROSSOVER

  • Bi Amp 12 dB crossover
  • Tweeter overload protection
  • Dimensions: 131 x 84 x 38 mm

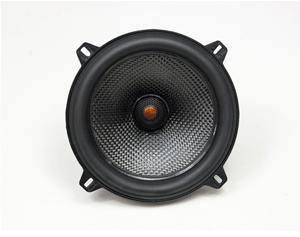

ILLUSION CARBON C5 CX
5" Coaxial Kit

COAX

  • Woven carbon fiber cone with rubber surround cast aluminum basket
  • Free Air Resonance: 88.19 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 @ 1 meter: 88.1
  • Outside Diameter: 129 mm basket + 149.2 mm ears
  • Mounting Hole Diameter: 120 mm
  • Mount Depth: 62.4 mm
  • Point Source Tweeter
  • Bi Amp 12 dB crossover
  • Maximum Linear Excursion: ± 5.5 mm

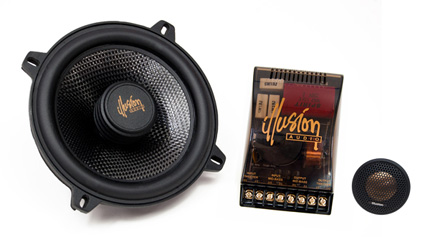

ILLUSION CARBON C5
5" Component Kit

MIDBASS

  • Woven carbon fiber cone with rubber surround cast aluminum basket
  • Free Air Resonance: 83.3 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 V @ 1 meter: 87.3
  • Outside Diameter: 129 mm basket + 149.2 mm ears
  • Mounting Hole Diameter: 120 mm
  • Mount Depth: 43.4 mm
  • Maximum Linear Excursion: ± 5.5 mm

TWEETER

  • 25 mm Beryllium Copper
  • 4 ohm
  • Outside Diameter: 48.2 mmM
  • Mount Hole: 43.5 mm
  • Mount Depth: 24 mm

CROSSOVER

  • Bi Amp 12 dB crossover
  • Tweeter overload protection
  • Dimensions: 131 x 84 x 38 mm

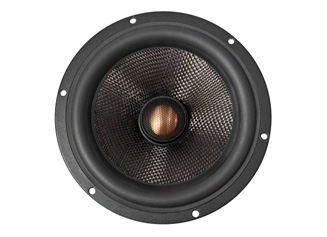

ILLUSION CARBON C6 CX
6" Coaxial Kit

COAX

  • Woven carbon fiber cone with rubber surround cast aluminum basket
  • Free Air Resonance: 68.36 Hz
  • Nominal Impedance: 4Ohms
  • Sensitivity 2.83 V @ 1 meter: 88.7
  • Outside Diameter: 166.5 mm
  • Mounting Hole Diameter: 137.4 mm
  • Mount Depth: 80.3 mm
  • Point Source Tweeter
  • Bi Amp 12 dB crossover
  • Maximum Linear Excursion: ± 7.7 mm

ILLUSION CARBON C6
6" Component Kit

MIDBASS

  • Woven carbon fiber cone with rubber surround cast aluminum basket
  • Free Air Resonance: 67.29 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 V @ 1 meter: 90.7
  • Outside Diameter: 166.5 mm
  • Mounting Hole Diameter: 137.4 mm
  • Mount Depth: 53.3 mm
  • Maximum Linear Excursion: ± 7.7 mm

TWEETER

  • Component Tweeter
  • 25 mm Beryllium Copper
  • 4 ohm
  • Outside Diameter: 48.2 mm
  • Mount Hole: 43.5 mm
  • Mount Depth: 24 mm

CROSSOVER

  • Bi Amp 12 dB crossover
  • Tweeter overload protection
  • Dimensions: 131 x 84 x 38 mm
