ILLUSION CARBON SPEAKERS
Carbon is Illusion's premier line utilizing the best technologies. They deliver audiophile sound quality combined with high loudness and extreme durability. Carbon sound quality is detailed, revealing, extremely dynamic and punchy. Bass is articulate and extended with good weight, revealing the rhythm and pace of the music. The low distortion, extreme clarity and enormous sound stage size bring the concert alive. You have never heard music this real in a vehicle before! Illusion Audio Carbon speakers are truly, "compact without compromise".
1
2

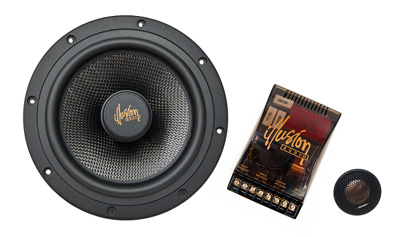

ILLUSION CARBON C8
8 " 2-Way Component Kit
MIDBASS
Woven carbon fiber cone with rubber surround cast aluminum basket
Free Air Resonance: 46.83 Hz
Nominal Impedance: 4 Ohms
Sensitivity 2.83 V @ 1 meter: 90
Outside Diameter: 227.6 mm
Mounting Hole Diameter: 188.6 mm
Mount Depth: 56 mm
Maximum Linear Excursion: ± 7.9 mm
TWEETER
Component Tweeter
25 mm Beryllium Copper
4 ohm
Outside Diameter: 48.2 mm
Mount Hole: 43.5 mm
Mount Depth: 24 mm
CROSSOVER
Bi Amp 12 dB crossover
Tweeter overload protection
Dimensions: 131 x 84 x 38 mm

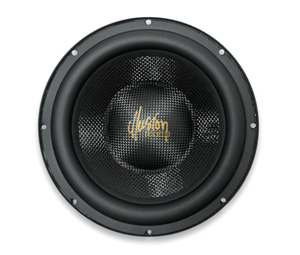

ILLUSION CARBON C10 XL
10" Subwoofer
SUBWOOFER
Woven carbon fiber cone with rubber surround cast aluminum basket
Dual 2 Ohm Voice Coils
Free Air Resonance: 42 Hz
Nominal Impedance: 4 Ohms
Sensitivity 2.83 v @ 1 meter: 85.6
Mounting Hole Diameter: 234 mm
Mount Depth: 147 mm
Recommended Sealed Enclosure Volume: 0.75 ft3
Maximum Linear Excursion: ± 18 mm

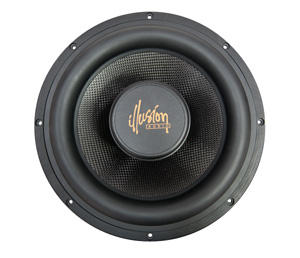

ILLUSION CARBON C10
10" Subwoofer
SUBWOOFER
Woven carbon fiber cone with rubber surround cast aluminum basket
Free Air Resonance: 32.05 Hz
Nominal Impedance: 4 Ohms
Sensitivity 2.83 v @ 1 meter: 87.9
Mounting Hole Diameter: 240 mm
Mount Depth: 75.6 mm
Recommended Sealed Enclosure Volume: 0.75 ft3
Maximum Linear Excursion: ± 10 mm

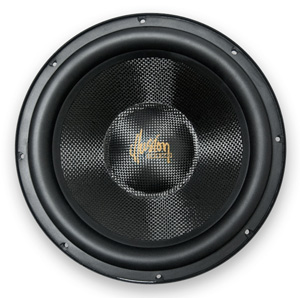

ILLUSION CARBON C12 XL
12" Subwoofer
SUBWOOFER
Woven carbon fiber cone with rubber surround cast aluminum basket
Dual 2 Ohm Voice Coils
Free Air Resonance: 31.61 Hz
Nominal Impedance: 4 Ohms
Sensitivity 2.83 v @ 1 meter: 87.4
Mounting Hole Diameter: 284 mm
Mount Depth: 156 mm
Recommended Sealed Enclosure Volume: 1.0 ft3
Maximum Linear Excursion: ± 18 mm
ILLUSION CARBON C12
12 " Subwoofer
SUBWOOFER
Woven carbon fiber cone with rubber surround cast aluminum basket
Free Air Resonance: 28.06 Hz
Nominal Impedance: 4 Ohms
Sensitivity 2.83 v @ 1 meter : 87.8
Mounting Hole Diameter: 281 mm
Mount Depth: 83 mm
Recommended Sealed Enclosure Volume: 1.0 ft3
Maximum Linear Excursion: ± 12 mm
